ECG - 3 Channel With Large LCD Screen

Click on image to view full picture

  • ECG - 3 Channel With Large LCD Screen

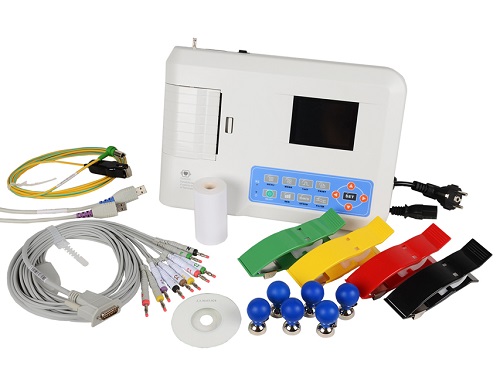

ECG - 3 Channel With Large LCD Screen
Product Code: MG-33221
 £852.00
 (£710.00 Ex. VAT)
Add to Cart
OR

Free UK Shipping

Quick Overview

ECG machine with USB connection allows real-time transmission to PC, remote data analysis and diagnosis, management and printing through the PC.

Built-in memory can store more than 1000 cases

High capacity built-in lithium rechargeable battery Battery power supports up to 150 ECG continuous records

Supplied witstandard accessories ECG cable - 1 set , Limb electrode clamp - 1 setand chest electrodes - 1 set
ground wire ,  power connection and aper roll

Features
3.5" TFT colour LCD screen
12 leads simultaneous display
Thermal printing system
USB connection and PC software
AC and DC power supply
Size 315 x 215 x 77 mm
Net Weight: 1.6 kg
Built-in Database
Digital signal processor for filter
Auto-measurement, auto-analysis, auto-interpretations
ECG-Sync software, USB connection to PC
Internal software: GB, FR, IT, ES, DE, TR, PL, PT, SI, BG, YU, RU, KZ, CN.
C software ECG Synchronous: GB, IT, FR, DE, PL, SK, TR.
Manual: GB, IT, ES, FR.

Technical Specifications
ECG instrument Input
Safety Type: Class I, type CF applied part, which has defibrillation-proof applied part
Lead Standard 12 leads
Input way: Floating and defibrillation protection
Patient leak current: <10µA
Sampling rate: 1000Hz
A/D conversion: 12bit
Frequency response 0.05Hz~150Hz (-3dB, + 0.4dB)
Time constant: >3.2s
CMRR: >60dB, >100dB(Add filter)
Enduring polarization voltage: ±500mV
Noise level: <15µVp-p
Dispose Wave Data
EMG interference filter: 25Hz/35Hz (-3dB)
AC filter 50Hz/60Hz (-20dB)
Waveform output
Recording way: Thermal printing system (32spots/mm)
Recording paper: 80mm(W)×20m(L)
Sensitivity: 2.5, 5, 10, 20, 40 mm/mV
Paper speed:
Auto-record: 25 mm/s, 50 mm/s
Rhythm record: 25 mm/s, 50 mm/s
Manual-record: 5, 6.25, 10, 12.5, 25, 50 mm/sFuse 2 pcs Ø5×20mm AC time lag; T250mA/250V(Power Supply:220V)
