BeneHeart R3 utilizes the University of Glasgow ECG analysis algorithm, one of the world-leading resting ECG interpretations with 40 years of history.



The Glasgow algorithm is the first to be based on specific variables, including age, gender, race, medication, and class in order to maximize the accuracy of the ECG interpretation.



On the report, a headline may highlight one of several “critical value warnings” to alert medical attendants of findings that need immediate attention.



5-inch color screen offers the highest resolution in industry, enabling clinicians to observe real-time waveforms accurately.

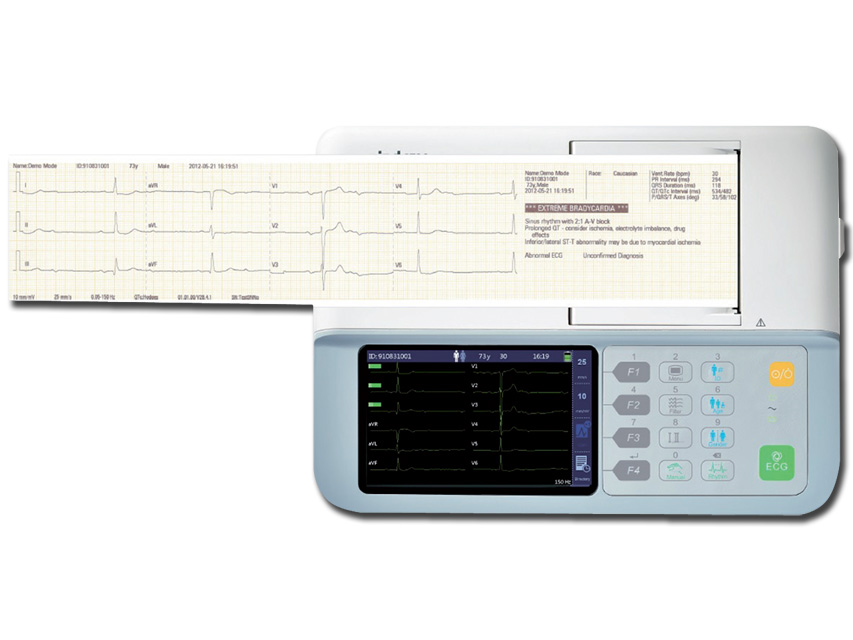

ECG recording is automatically unfolded on the writing pad on top of the machine for notes or signature.



Compatible with both rolling paper and Z-fold paper, you can easily switch between these two styles of paper without dismantling the pressure lever.



Lightweight portable cardiograph for resting ECG diagnosis.



Features

Reliable analysis - Glasgow algorithm

Utilizes the University of Glasgow ECG analysis algorithm, one of the world-leading resting ECG interpretations.

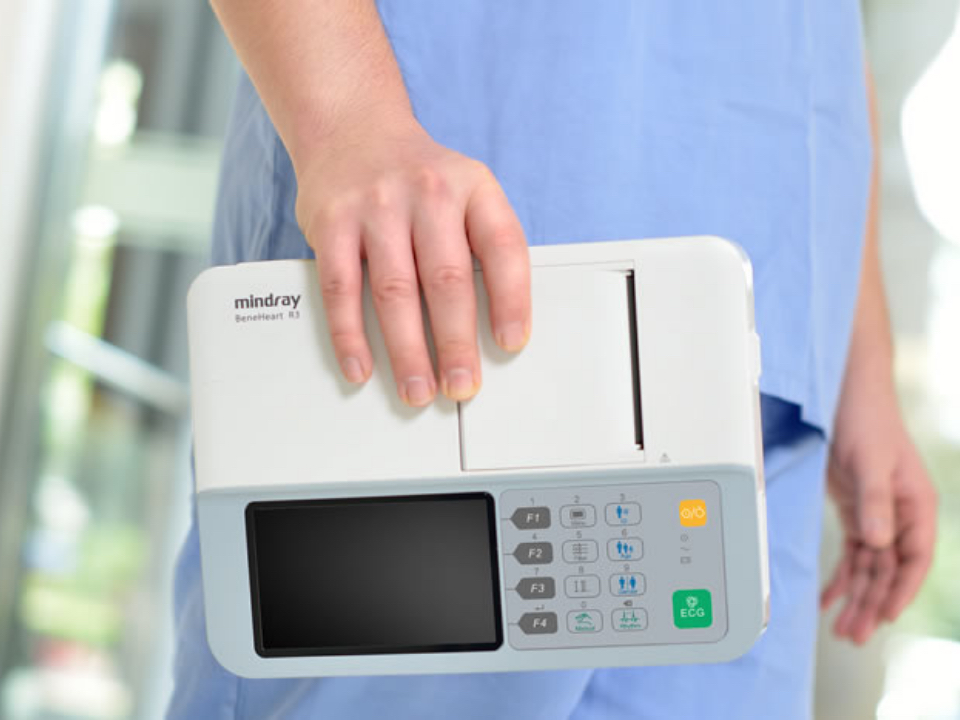

Weighs only 1.2 kg with battery, easy to carry.

5” clear colour display

Offers the highest resolution in industry, enabling clinicians to observe real-time waveforms accurately.

Convenient operations

ECG recording is automatically unfolded on the writing pad at the top of the unit for notes or signature.

Unique recorder - Z-folded or rolling paper

Compatible with both rolling paper and Z-fold paper.

Power

Supply: AC input without external power adaptor or battery operation

AC power: 100 to 240 VAC ± 10% 60 VA

Battery-type: rechargeable Lithium ion battery 11.1 V typical, 2500 mAh

Capacity: 6 hours of continuous operation without recording or 500 ECGs in 2.5 x 4 format at 25 mm/s and 10 mm/mV

Charge time: 3.5 hours with power off

Processing

ECG analysis

Samplig rate: 500 samples/second (sps)

Digital sampling rate: 1000 samples/second/channel

Pacer detection sampling rate: 16000 samples/second/channel

ECG amplifier: DC-coupled

Acquisition mode: Pre-acquisition or post-acquisition provide 10 seconds of instantaneous ECG acquisition

Baseline drift filter: 0.05 Hz, Baseline Drift Removal (BDR)

AC filter: 50/60 Hz ± 0.3 Hz

ADC: 24 bit

Imput impedance: 50 MD at 10 Hz, defibrillator protected

Patient leakage: < 10 µA

Heart rate meter: 30 to 300 BPM ± 10% or ± 5 BPM, whichever is greater

Sensitivity/gain: 5, 10, 20 mm/mV, Auto

Display

Dysplay: 24 bit Colour display TFT LCD with LED graphics backlit

Resolution: 800 x 400

Display data: Patient ID, gender, age, heart rate, clock, battery power indicator, waveforms, lead labels, speed, gain, filter settings, warning messages, information messages, network status and USB

Thermal printer: Dot array/Width 80 mm/speed 5, 12.5, 25, 50 mm/s

Software

Measurement and interpretation: according to University of Glasgow ECG analysis algorithm

Resting ECG mode: Records and prints 12-lead resting ECG with 10-second duration as a standard

Patient information: Patient ID, secondary ID, age, date of birth, gender, race, medication class and V3 electrode placement

Internal storage: 800 ECGs in internal memory

ECG Storage format: PDF format and Mindray storage format

Multi-language internal software: GB, FR, IT, ES, DE, PL, PT, TR, RU, HU, RO, CZ, CN

Report formats Thermal printer/PDF/A4/letter

Size: 250 x 194 xh 56 mm

Weight: 1.2 kg including batter
